Pressure Relief Damper​

Model: PRD

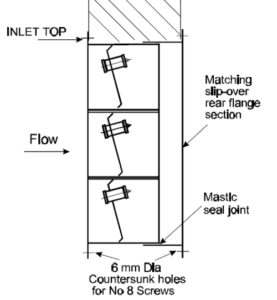

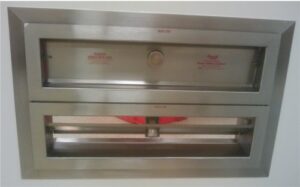

The Aercon® LF Pressure Stabiliser features one to seven precisely balanced stainless steel blades that pivot on sealed-for-life ball bearings, each equipped with a centrally positioned balance weight assembly that can be adjusted for pressure within the range of 5 to 35 Fa or 30 to 50 Fa, with additional sensitivity control. The blades are fully enclosed within a housing made of carbon steel with a white polyester coating (RAL 9010) or a Grade 304 or 316 stainless steel housing. The front flange is pre-drilled for easy screw fixing directly to the wall. Additionally, the stabiliser assembly includes a matching slip-over rear flange section, which is also pre-drilled for screw attachment.

Aercon® LF stabilisers are self-activating, detecting a preset pressure, and require a 110 external power source. They are not dependent on volume as long as the volume being passed is at least 10% of the unit’s rated maximum at the specified pressure (refer to brochure). Please ensure that the inlet and outlet of the stabiliser are free from any obstructions.
